Order no.: 060960

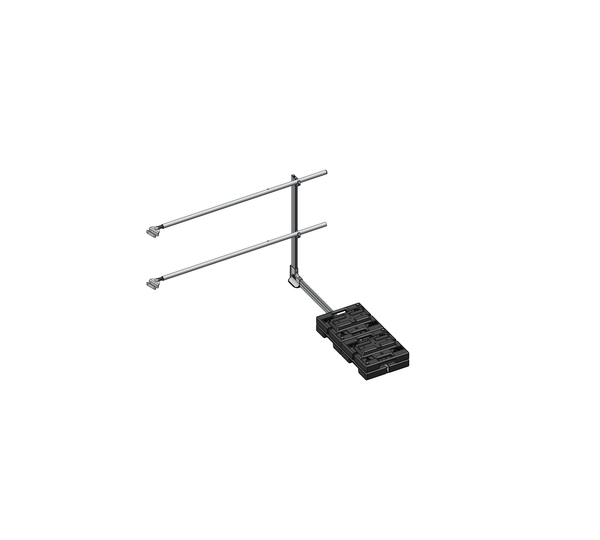

Exit railing, side
€ 704.00
RRP without VAT
Specifications
Length
2 m
Material
Aluminium
Weight
63.9 kg
Transport dimensions
390 x 390 x 265 mm, 56.4 kg
Transport dimensions 2
1520 x 190 x 140 mm, 7.5 kg
Predecessor product
060988
Business division
MUNK Günzburger Steigtechnik
Order no.
060960
Price
€ 704.00
Information
- Fall protection devices are required at exit points from vertical ladders and should preferably consist of railings on both sides of the vertical ladder, see DIN EN ISO 14122-4 and DIN 18799-3
- Including two clamp connectors for exit side-rail
- Fixing by means of ballast weight 4 x 12.5 kg
- Dimensions: 2,000 x 1,100 mm
- For roof parapet ≥ 150 mm no toe board required
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Garde-corps: 1 x
- Ballast weight: 4 x
- Installation material: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Exit railing, side Metal roof cover shell | Exit railing, side 2.000mm, with ballast | Exit railing, side 2000 mm with ballast free-standing |
|---|---|---|---|
| Length | 2 m | 2 m | 2 m |
| Material | Aluminium | Aluminium | Aluminium |
| Weight | 22.5 kg | 63.9 kg | 122.5 kg |
| Transport dimensions | x x mm, kg | 390 x 390 x 265 mm, 56.4 kg | 2050 x 800 x 350 mm, 122.5 kg |
| Transport dimensions 2 | 1520 x 190 x 140 mm, 7.5 kg | - | - |
| Predecessor product | 060997 | 060988 | 060998 |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 060968 | 060960 | 060964 |
| Price | € 1,220.00 | € 704.00 | € 1,097.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
